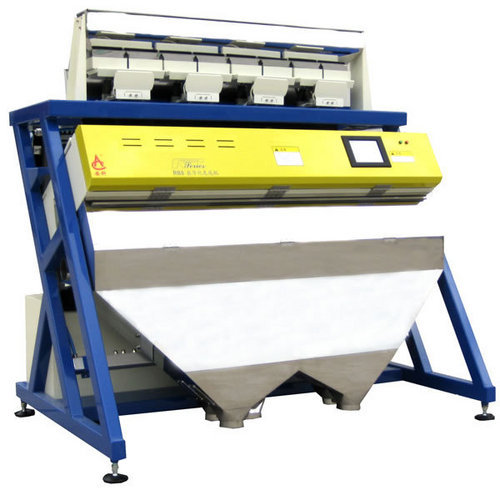

Multi Uses Colors Sorter

Multi Uses Colors Sorter
Multi Uses Colors Sorter
Product Code : 54
Product Description

Type

6SXM-400B

6SXM-320B

6SXM-240B

Channels

400

320

240

Throughput(T/H)

<4

<3

<2

Sorting Accuracy (%)

> 99.9

>99.9

>99.9

Optimized carryover(bad: good)

>4:1

>4:1

>4:1

Channels preset for primary sorting and re-sorting

280:120

240:80

160:80

Sorting speck

Minimum 0.15MM (90%)

Minimum 0.15MM (90%)

Minimum 0.15MM (90%)

Voltage (V)

~220(50Hz)

~220(50Hz)

~220(50Hz)

Power of main machine (KW)

3.2

3.0

2.2

Air Pressure (MPa)

0.6~0.8

0.6~0.8

0.6~0.8

Air consumption (m3/min)

<3.6

<3.0

<2.5

Weight (Kg)

1100

900

850

Dimension (L x W x H)(mm)

2595x1450x2127

2043 x 1410 x 2040

1920 x 1410 x 2040

Note: All the performance data listed above is taken millet as example, and the actual index is to be altered subject to the material and content of the contaminants
